1000kg steer loader HY1000 minicargadora

FOB Reference Price:Get Latest Price
$19,000.00 - $25,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
HY1000
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
3610*1979*1800
Condition:
New
Brand Name:
HYSOON
Place of Origin:
Shandong, China
Type:
Skid Steer Loader
Moving Type:
Wheel Loader
Rated Load:
1000kg
Certification:
CE GOST
operating weight:
3300kg
product:
steer loader
operating load:
1000kg
color:
customized
fuel:
diesel
power:
60HP
max dumping height:
2266mm
turn radius:
2056mm
max dumping distance:
437mm
travel speed:
0-10km/h
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Month
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
no package
Port
Qing Dao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated

Product Description



1000kg steer loader HY1000 minicargadora

  • Stronger body frame protect operator from danger, the rear window is large and it serves as an emergency exit. Close cab  with boader sight line
  • Ergonomically designed safety armrest not only prevents the operator from falling off the chair accidentally, but also can support the operator body to have a rest when he was tired.
  • Imported hydraulic system, superior performance
  • Bigger fuel tank, imported automatic leveling system keeps the bucket balance in the working
  • High performace diesel engine can provide a strong power make sure it can work under any operating condistions and in the mean time make sure its multifucntionality. And in order to lower the idelness ratil of plant, improve its working efficiency.
  • All instruments and operating buttons are within the reach of the operator
  • There is the spacious entrance into the cabin with extra handles at the outer cabin frame for added convenience, ample floor space also caters to tall machine operators.
  • Wide range of multi-function attachments for skid steer loader such as 4 in 1 bucket, hydraulic breaker and so on, which can easily satisfied your operational needs.
  • 1000kg large loading capacity
  • Benefit by comprehensive design, its lighting system can provide the light of full scope work.

















Easy maintenance:

the machine's cab can be opened totally with wide turning angle which can save time and improve efficiency in daily maintenance.



 With a wide range of attachments like snow blower, lawn mower, backhoe, stone bucket, trencher, sweeper, auger and so on. Skid steer loader HY1000 as a multi-function loader can work for road construction, garden, farm, building and some other places where are narrow and need to change job content frequently.













Max working height(A)

3490mm

Max pin height(B)

3028mm

Max height with level bucket(C)

2814mm

Max dumping height(D)

2266mm

Max dumping distance(F)

437mm

wheel base(G)

1044mm

Total height(H)

1979mm

Ground clearance(J)

196mm

Length without bucket(K)

2621mm

Total length(L)

3400mm

Bucket Width(M)

1720mm

Total width(W)

1665mm

Distance between wheels(P)

1425mm

tire thickness(N)

240mm

Departure angle(α)

19°

Dumping angle at max height(β)

41°

Rollback of bucket on ground(θ)

18°

Turn Radius(R)

2056mm



Operating Load

1000KG

Weight

2900

Engine

Chengdu Yun Nei

Rotating Speed

2400r/min

Engine type

4-stroke,water-cooled,4-cylinder

Rated Power

60KW

Standard Fuel consumption rate

Below or equal245g/KW·h



Fuel consumption rate on max torque

below or equal238g/KW·h

Noise

below or equal117dB(A)

Generator power

500W

Voltage

24V

Battery

105AH

Speed

0-10 Km/h

Drive mode

4 wheel drive

Tire

10-16.5

pump flow for running

110L/min

Pump flow for work

62.5L/min

Pressure

15MP

fuel tank capacity

90L

oil tank capacity

63L

pump

America SAUOR






Packaging & Shipping




Our Services
  • 1 year warranty.( Engine warranty is 3 years, International warranty service )
  • 24hours technical support
  • Calling or door to door service
  • Supply high quality small wheel loader for you at reasonable price
  • Accept your customization

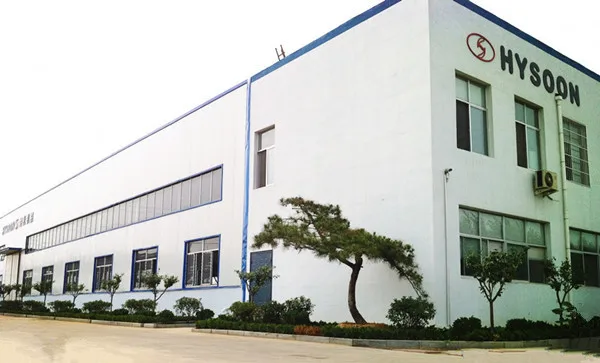

Company Information
 Our company is the leading professional manufacturer specializing in mini skid steer loader and skid steer attachments in north of China for 7 years and get rich experience.

 Complying with the principle of "Credit First and Quality First", we zealously adopt the advanced production technology, use the advanced equipment and implement the advanced management experience in the production of miniature engeering machinery. We manufacture all kinds of miniature engineering machines which have the beautiful appearance, the high quality and bring the comfort and convenience to you during operation.

Our products are not only popular in domestic markets, but also have been exported to Ameica, Canada, Australian, Argentina, Russia, etc. Due to the high quality, we received the extensive approval and trust from our clients all over the world.

We strictly comply with ISO9001 Quality Management System Authentication and ISO14000 Environment Management System Authentication. The amount of engines' exhaust has reached EUROII or EUROIII Standard.



Warmly welcome to visit our factory.

FAQ



 Why us?

1. We are the first manufacturer of mini loader with accessories in China.

2. we have stong technical support ,  Professional desgin team, can make sepcial design for you.

3. High Quality & Reasonable Price. The accurate product positioning.

4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory .



Our Warranty?



1. supply  parts for free if damage  within  1 year warranty time .

2. Engineers are available to service machinery overseas

3. Provide technical support for life.





Do we have Distributors?



Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world.

If you want to be one of them, please contact us.





Can we accept OEM?



Yes, we can
