HYSOON HY380 Mini skid steer loader like toro dingo

FOB Reference Price:Get Latest Price
$3,000.00 - $7,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
HY380 HYSOON HY380 Mini skid steer loader like toro dingo
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
2206mm*1033mm*1205mm
Condition:
New
Brand Name:
HYSOON
Place of Origin:
Shandong, China
Type:
Skid Steer Loader
Moving Type:
Wheel Loader
Rated Load:
200KG
Certification:
CE GOST
Name:
HYSOON HY380 Mini skid steer loader like toro dingo
Engine:
Briggs&Stratton petrol
Hose Power:
23HP
certification:
CE
color:
yellow
Bucket:
0.15cbm
weight:
940kg
load capacity:
200kg
Certificate:
CE GOST
HYSOON Mini skid steer loader attachment:
fork, bucket, blade, trencher, snow blower, tiller
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 MONTHES
Supply Ability
Supply Ability:
200 Set/Sets per Month HYSOON HY380 Mini skid steer loader like toro dingo
Packaging & Delivery
Packaging Details
plywood packaging&ironhide packaging for sample HYSOON HY380 Mini skid steer loader like toro dingo
Port
Qingdao,Shanghai,Tianjin

HYSOON HY380 Mini skid steer loader like toro dingo



Engine:Briggs & Stratton Petrol Engine

• Tyre:Chevron tire
• Motor: Low speed high torque motors
• Hydraulics Pumps: Gear Pump
• Bucket:Plain
• System pressure:17Mpa
• System flow: 51L/min
• Speed:0-5.5km/h
• Size ( length *width *height):2206*1033*1205mm
• Bucket capacity:0.15cbm/200kg
• Operating weight:940kg



General description



HYSOON HY380 Mini skid steer loader like toro dingo is without doubt one of the most versatile pieces of construction equipment available on the market today. Skidsteers, and Mini skid steers with their compact size, maneuverability, and ability to easily switch among a huge range of different attachments makes them an invaluable tool.

The HYSOON HY380 Mini skid steer loader like toro dingo consists of a rigid frame with lift arms that are used to attach a wide variety of attachments for a variety of different jobs.



HYSOON HY380 Mini skid steer loader like toro dingo Attachments



There are numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.



Broad field-of-use.



It can be used in landscaping, manufacturing, general construction, recycling, gardens, road, building, farm and many other industries.



OUR COMPANY work hard to ensure OUR LOADERS are easily serviceable.



HYSOON HY380 Mini skid steer loader like toro dingo Spec Below



EngineRated Power17.1Kw (23HP)
Rated Speed3600 rpm
Noise<=95Db
Hydraulic systemHydraulic Pressure17Mpa
Cycle timeRaiseDumpLower
4.27s1.34s3.31s
Load capacity200kg
Bucket Capacity0.15cbm
Max Lifting Force375kg
Speed0-5.5km/h
Total Weight890kg
Tyre model18*6.5-8

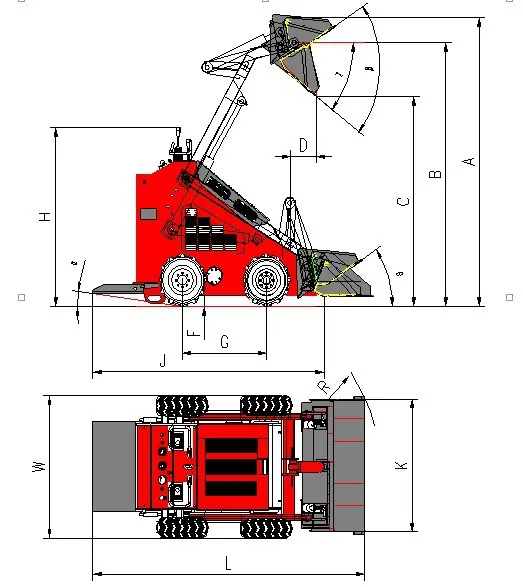

ItemData
Max Working Height (A)2143mm
Max Pin Height (B)1884mm
Max Dump Height (C)1488mm
Dump Distance at highest point (D)348mm
Bucket dump angle30degree
Bucket collectiong angle25degree
Departure angle11degree
Total Height (H)1233mm
Ground Clearance (F)118mm
Wheelbase (G)636mm
Length without bucket (J)1752mm
Total Width (W)1160mm
Bucket Width (K)1150mm
Total Length (with bucket) (L)2206mm
Turning Radius1307mm

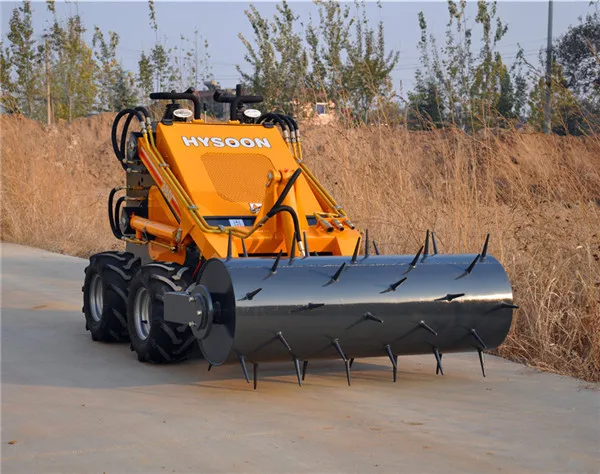

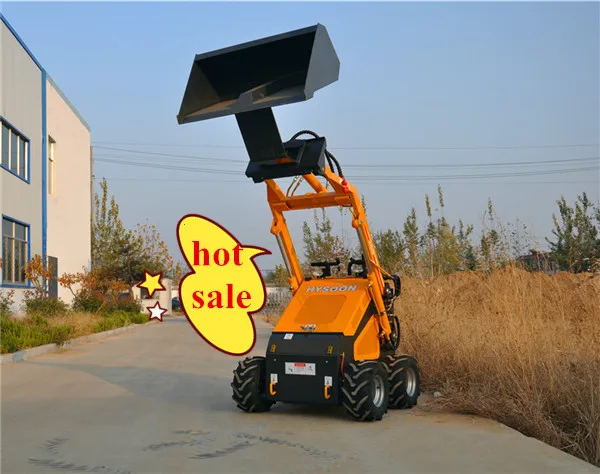

  More pictures of HYSOON HY380 Mini skid steer loader like toro dingo













Related Products





Packaging & Shipping

  HYSOON HY380 Mini skid steer loader like toro dingo detail packing&shipping method as below,







Company Info

Taian Hysoon Machinery Co.,Ltd.

is the manufacture of the construction machinery.

We always focus on mini construction equipment,now have a series products.

HY380 mini skid steer loader,

HY280 Mini digger,

HY200 articulated mini loader,

HD10L 4wd mini loader,

HY700 skid steer loader like bobcat,

HY850 skid steer loader which is special height design,only 1482mm height,

HY1000 skid steer loader with 1000kg load capacity,and big flow'

FD350 mini dumper is the smallest size,

HD05 mini dumper,can realize electric power driving,

HD10 wheel dumper is 4 wheel drive.

And in the year 2015,Hysoon company will focus on to realize remote control on our proudcts

Wish there is chance to cooperate with you,for win-win.

Taian Hysoon Machinery Co.,Ltd. workshop overview



Taian Hysoon Machinery Co.,Ltd. Products Range
