Loader with drill, Hydraulic Ground Hole Drill Auger Machine for tree planting

FOB Reference Price:Get Latest Price
US $6,000-9,000 / Sets | 1 Set/Sets Auger Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Brand Name:
HYSOON
Place of Origin:
Shandong, China (Mainland)
Type:
Skid Steer Loader
Moving Type:
Both wheel and crawler loader
Dimension(Long * Breadth * High):
2206mm*1160mm*1233mm
Rated Load:
200kg
Certification:
CE,Gost
Warranty:
1 year, 1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Model Number:
HY380 Auger Machine
Auger Machine Model:
HY380
Engine power:
23HP
Engine:
U.S. Briggs & Stratton Engine
Bucket capacity:
0.15m3
Attachments:
digger, backhoe, fork,grapple,trencher,lown mower,auger drill .etc
Color:
Yellow or Customize
Engine Warranty:
3 years
Digging depth:
0-1000mm
Types with different diameter:
150-600mm
SupplyAbility
SupplyAbility:
300 Set/Sets per Month Hydraulic Auger
Packaging & Delivery
Packaging Details
For LCL: steel frame with ply-wood cover
For FCL: 5 Sets s for 20 feet container, 10 sets for 40 feet container.
Port
Qingdao
Lead Time :
within 7 days after receipt of 30% down payment or L/C at sight

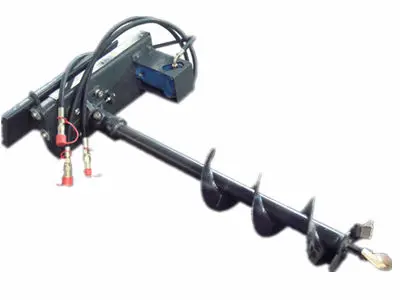

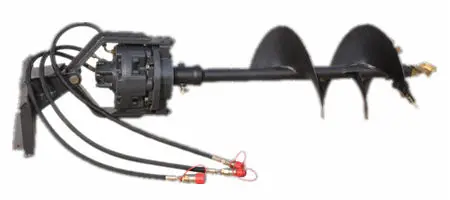

Tree Planting, Hydraulic Ground Hole Drill Auger Machine

Features:


1. Engine: U.S Briggs& Stratton Engine, Gasoline, 23HP

2. Pump: Gear Pump

3.Valve: Italy Multi-way Valve

4. Tires: Engineer Tires. Optional: Solid Tires, Grass Tires, Crawler

5. Optional Configuration: Servo System.(Joystick)
6. Tyre of auger levers: Φ150mm  Φ200mm  Φ300mm  Φ400mm  Φ450mm  Φ600mm
7. Length of auger levers: 1275mm

8. Displacement of motor: 420ml/r

9. Torque: 800N.m

HY380 mini skid steer loader auger .jpg



HY380 Skid Steer Loader Parameter:


Items

 Size(mm)

Dimension

2206* 1160* 1233

Max pin height

1884

Max Working Height

2143

Max Dump height

1488

Max Dump distance

348

Total Height

1233

Overall length with bucket

2206

Overall Length without bucket

1752

Bucket width

980

Total width

1160

Ground clearance(F)

118

Wheel base

636

Departure angle(α)

11°

Max Dumping angle (γ)

30°

Rollback of bucket on ground(θ)

25°

Mini Turn Radius

1307



A loader serves several purposes.  HY380 mini skid steer loader can also with many kinds of attachments for different functions to cater for your working need.. Your ideal choice. Attachments can be

backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,4 in 1 bucket, snow blower, leveler,mixer, lawn aerator,trench filler, trencher,grapple,,auger,stonr bucket, auger levers,standard bucket,trailer system, and so on.

with different attachments.jpg
