Walk behind mini excavator

FOB Reference Price:Get Latest Price
US $7,000-10,000 / Sets | 1 Set/Sets Walk behind mini excavator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HYSOON
Model Number:
HY380
Condition:
New
Moving Type:
Wheel Excavator
Operating Weight:
890kgs
Bucket capacity:
0.03m3, 0.15m3
Maximum Digging Height:
2738mm
Maximum Digging Depth:
1667mm
Machine Weight:
1100kgs
Max Digging Radius:
2531mm
Rated Speed:
5.5km/h
Certification:
CE EPA GOST
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Walk behind mini excavator
Moving type:
Wheel or Track
Engine:
Petrol engine
Rated power:
23HP
Rotation speed:
3300rpm/h
Digging bucket capacity:
123KG
Work flow:
50L/Min
System pressure:
170Mpa
SupplyAbility
SupplyAbility:
1000 Set/Sets per Year Walk behind mini excavator
Packaging & Delivery
Packaging Details
Walk behind mini excavator
Seaworthy packing:Packed by steel frame with plywood case.
Port
Qingdao seaport,China
Lead Time :
45 days upon receive advance payment
Product Description

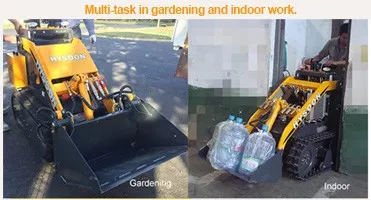

Product Application

Taian Hysoon Machinery Co.,Ltd is professional and premier manufacturer of a mini skid steer,mini excavator,skid steer loader,or skid loader in China. Hysoon skid steer digger is a small,rigid framed,gasoline engine powered machine with lift arms to attach a variety of labor-saving attachments.

Skid steer digger are typically four-wheel.Skid steer digger sometimes equipped with track instead of the wheels.Such a vehicle is knows as a multi-task skid steer.

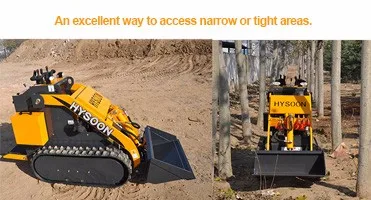

Hysoon mini skid steer digger is an excellent way to access narrow or tight areas,such as through a backyard gate or inn between buildings built closely together.

SPECIFICATIONS FOR WALK BEHIND MINI EXCAVATOR

Engine
Engine brand
American
Briggs&Stratton or Kohler
Rated power
23HP
17.1KW
Fuel
Petrol
Gasoline

Hydraulic system
System pressure
170Bar
17Mpa
Hydraulic flow
50L/Min









Dimension
Max working height
84.37inch
2143mm
Max pin height
74.17inch
1884mm
The highest point discharge distance(D)
13.7inch
348mm
Ground clearance
4.65inch
118mm
Wheelbase
25inch
636mm
Length without bucket
70inch
1778mm
Length with bucket
86.9inch
2206mm
Total width
41.73inch
1060mm
Total height
48.54inch
1233mm
Turning radius
48.7inch
1236mm
Bucket width
45.3inch
1150mm
Bucket capacity
5.33ft3
0.15m3
Complete machine
Rated loading capacity
441Lb
200kg
Operating weight
1962Lb
890kg
Travelling speed
0-3.4mile/h
0-5.5km/h

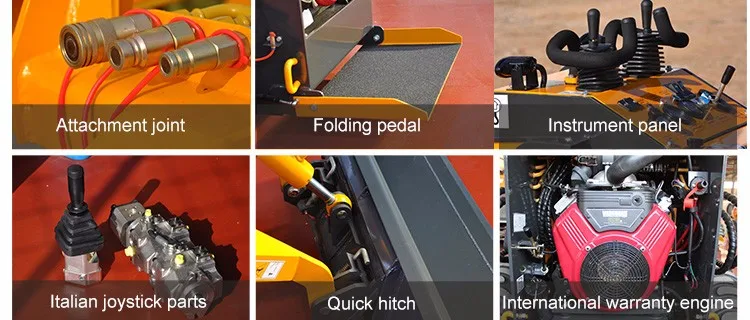

Main Features-Walk behind mini excavator

1) Quickly and easily attach with versatile attachments.

2) CE approved gasoline engine(Briggs&Stratton or Kohler),Italian valve.

3) Folding pedal design, operator can stand up on the pedal or walk behind to operate machine.

4) Optional joystick handle to steer the machine.

5) Flexible upper cover can be easily opened and dismounted for repair and maintenance.

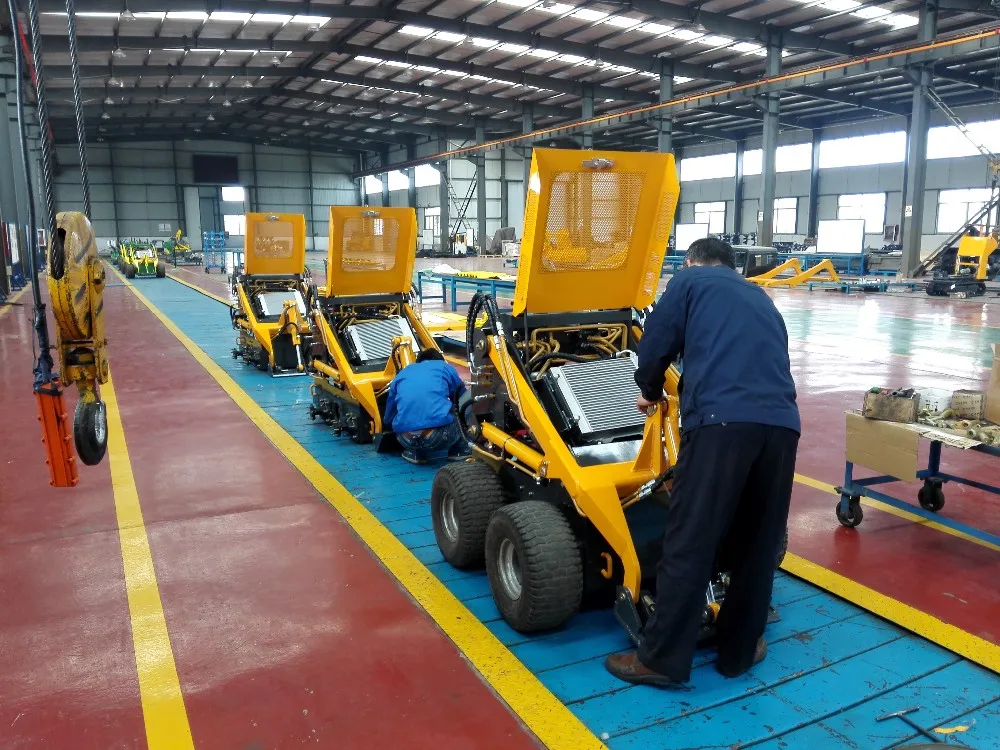

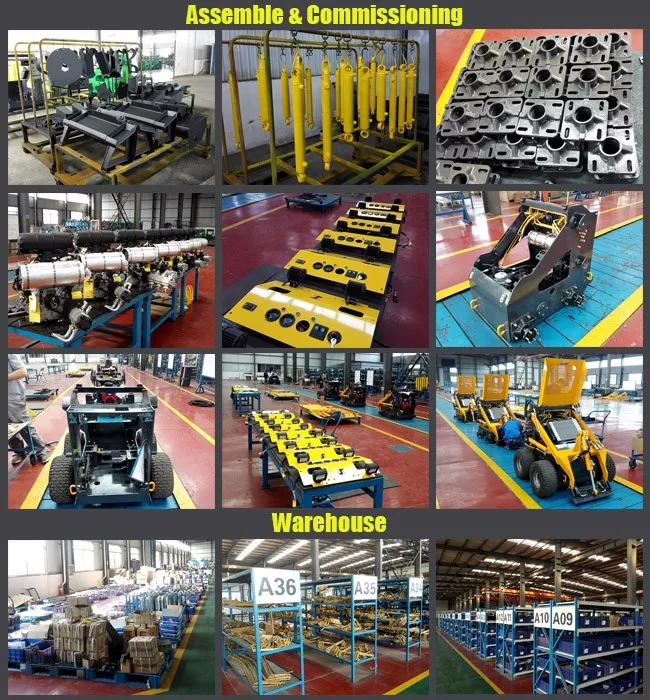

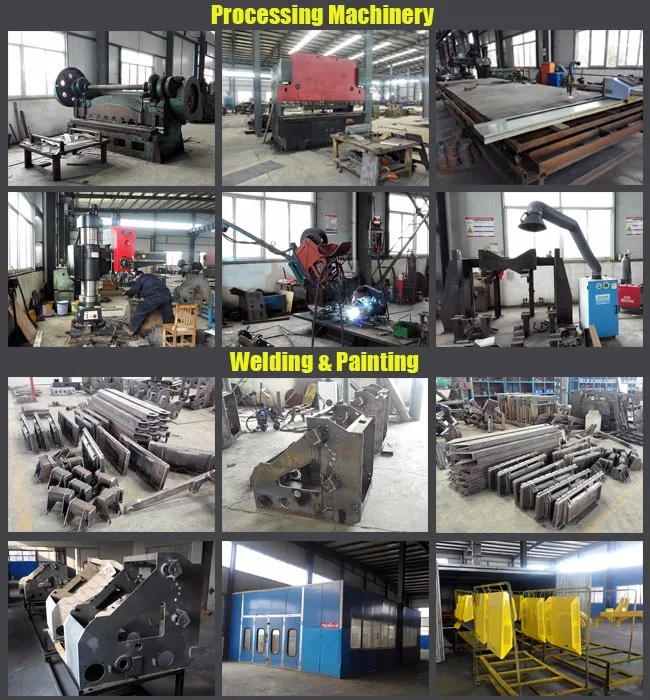

Factory Strength

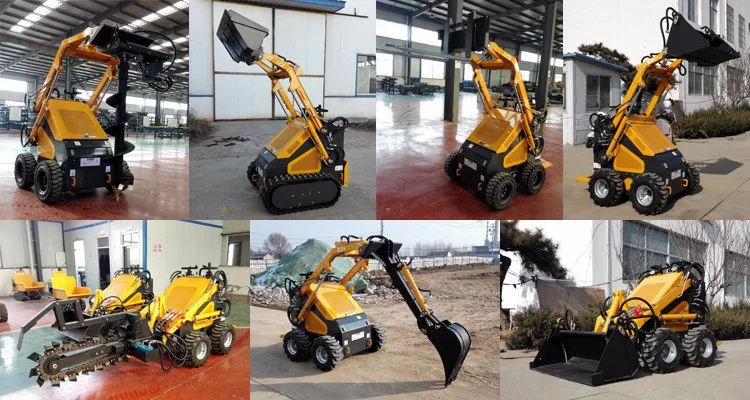

Attachments Details
Dimension
1750*900*470
(mm)
68.9*35.4*18.5
(inch)
Bucket capacity
123kg
271.2Lb
Max digging diameter
2531mm
99.6inch
Max digging depth
1667mm
65.6inch
Max dumping height
1560mm
61.4inch
Max digging height
2738mm
107.8inch

Size
(L*W*H)mm
Bucket Capacity
Metric Units
English Units

860*680*530

0.12m3

4.2ft3

1080*595*525

0.12m3

4.2ftm3

1150*595*525

0.15m3

4.2ftm3

Size(L*W*H)
mm

985*732*700
(mm)

38.78×28.82×27.56(inch)
Max cutting depth (mm)

830mm

32.68 inch
Number of teeth

16pcs

16pcs
Weight

195kg

430.27Lb
Drilling diameter of hole
150-600mm
5.9-23.6inch
Drilling depth
0-1000mm
0-39.4inch
Displacement of motor
420ml/r
25.63 in3/r
Drilling speed
100r/min
100rpm
Torque
1800N.m
183.55kgf.m
Dimension
1545*1010*875
(mm)
60.8*39.8*34.5
(inch)
Weight
177kg
390.28Lb
Max trenching depth
900mm
35.43inch
Once trenching width
200mm
7.87inch
Chain speed
154m/min
505fpm
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Detailed solution for your requirements.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* 24 hours online technical communication.

Packing & Delivery
Packaging
Machine
Size
2206 (L) * 1033 (W) *1233 (H) MM
Weight
1000kg



Packaging Details



Packed by steel frame with plywood.

Size( L*W*H): 1800*1300*1550mm


Packaging
Machine Size
2206 (L) * 1033 (W) *1233 (H) MM
Weight
1100kg



Packaging Details



Packed by steel frame with plywood.

Size( L*W*H): 2100*1700*2180mm
