Chinese mini skidsteer wheel loader machine construction

FOB Reference Price:Get Latest Price
US $14,000-17,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Brand Name:
HYSOON
Place of Origin:
Shandong, China (Mainland)
Type:
Skid Steer Loader
Moving Type:
Wheel Loader
Dimension(Long * Breadth * High):
3400*1665*1979mm
Rated Load:
700kg
Certification:
CE GOST
Model Number:
HY700
color:
yellow or customized
power:
60HP
fuel:
diesel
operating load:
700kg
travel speed:
0-10km/h
operating weight:
2860kg
turn radius:
2056mm
max dumping height:
2266mm
max dumping distance:
437mm
max working height:
3490mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Month
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
container loading
Port
Qingda0
Lead Time :
20 days after receipt 30% down payments
Video Description
Product Description
Chinese mini skidsteer wheel loader machine construction

60hp Xinchai 498 diesel engine

American Sauer pump

Hydraulic levelling

700kg operating load

Closed or simple cab can be chosen

Wheeled type

  • Stronger body frame protect operator from danger, the rear window is large and it serves as an emergency exit. Close cab  with boader sight line


  • Best-in-class pressurized interior space that minimizes dust, keeping you clean and comfortable. The one-piece seal and unique, curved door pocket ensure the best-possible protection. With a air fan. Heater or air conditioner optional.





  • Imported Sauer hydraulic pump, superior performance


  • 60HP diesel engine supply enough power for any working condition,There is import engine for your choice to installed on the Utility factory price wheel skid steer loader with U blade,and also with the world famous Sauer piston pump




  • All instruments and operating buttons are within the reach of the operator


  • Easy maintenance: the machine's cab can be opened totally with wide turning angle which can save time and improve efficiency in daily maintenance.


  • Numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine.

Widely used, HY700 skid steer loader is a versatile construction skid steer loader machine for sale. 700kg load capacity, 0.39 cube meter bucket capacity. Widely used in gardens, manufacturing, recycling, road construction, buildings, construction, farms, landscaping and so on.



Item

Data

max working height (A)

3490mm

max pin height (B)

3028mm

max height (C)

2814mm

max dumping height (D)

2266mm

max dumping distance (F)

437mm

wheelbese (G)

1044mm

total height (H)

1979mm

Ground Clearance (J)

196mm

Overall length without bucket (K)

2621mm

Total Lenght (L)

3400mm

Bucket Width (M)

1720mm

Total Width (W)

1665mm

Tread width to center line (P)

1425mm

Tire's thickness (N)

240mm

Departure angle

19degree

Bucket dumper angle

41degree

Retracting angle

18degree

Turning Radius (R)

2056mm



Engine
modelEuro||engine
rated power45KW
rotating speed2500r/min
Noise
inside of cab<=117
outside of cab
Hydraulic system
pressure15MP
operating load700KG
bucket capacity0.39m^3
travel speed0-10km/h
operating weight2860KG
tyre model10-16.5

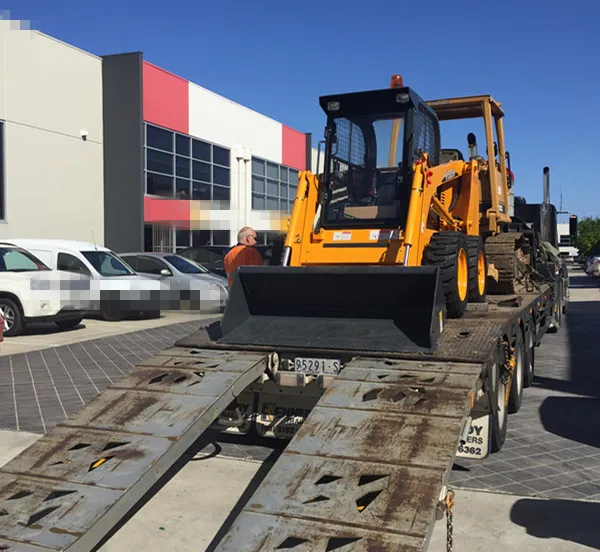

Packaging & Shipping

 No packing,loaded into the container directly and fasten well

2 sets per 20'container

4 sets per 40'container


 Land transportation
















Company products



Our Services
  • 1 year warranty.( Engine warranty is 3 years, International warranty service )
  • 24hours technical support
  • Calling or door to door service
  • Supply high quality small wheel loader for you at reasonable price
  • Accept your customization
Company Information

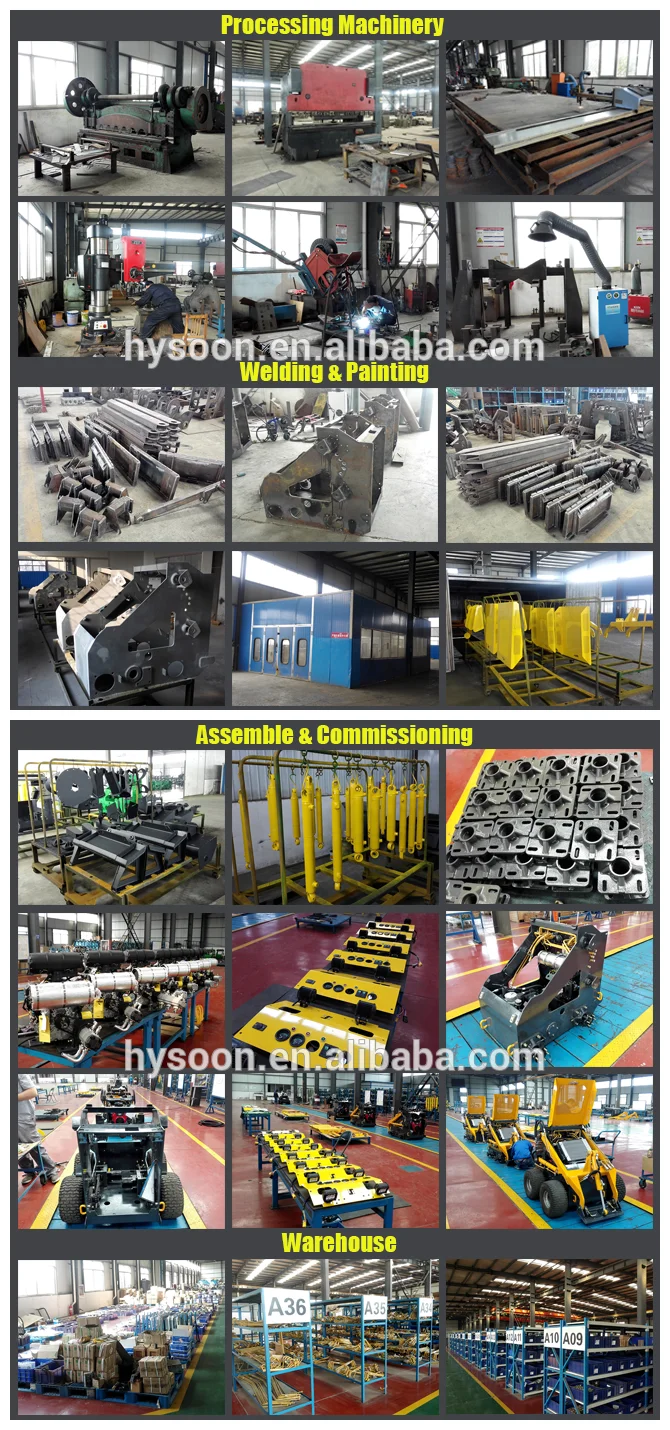

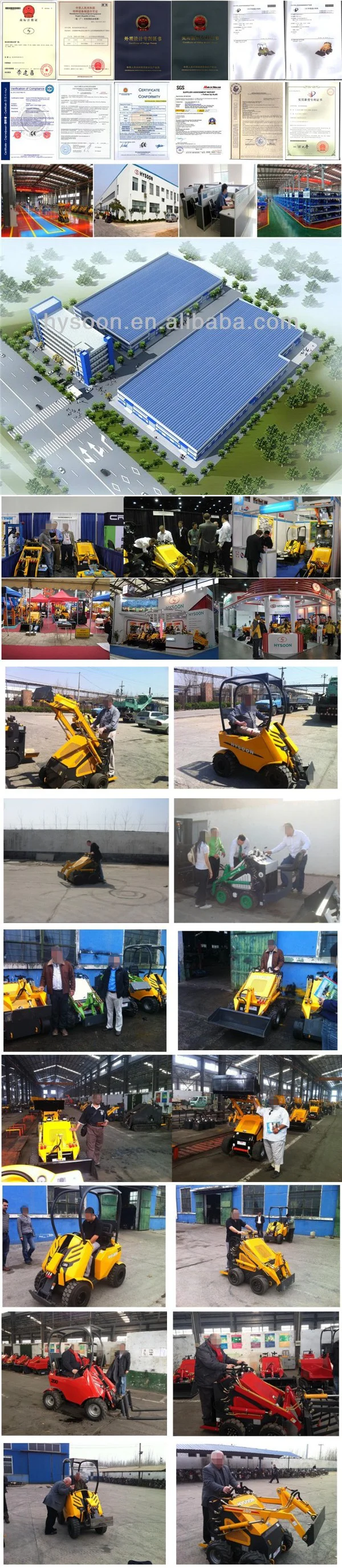

Taian Hysoon Machinery Co.,Ltd is the leading professional manufacturer specializing in skid steer loader and skid steer attachments in north of China for 10 years and get rich experience.
Complying with the principle of "Credit First and Quality First", we zealously adopt the advanced production technology, use the advanced equipment and implement the advanced management experience in the production of miniature engeering machinery. We manufacture all kinds of miniature engineering machines which have the beautiful appearance, the high quality and bring the comfort and convenience to you during operation.

Our products are not only popular in domestic markets, but also have been exported to Ameica, Canada, Australian, Argentina, Russia, etc. Due to the high quality, we received the extensive approval and trust from our clients all over the world.



FAQ



 Why us?

1. We are the first manufacturer of mini loader with accessories in China.

2. we have stong technical support ,  Professional desgin team, can make sepcial design for you.

3. High Quality & Reasonable Price. The accurate product positioning.

4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory

Our Warranty?

1. supply  parts for free if damage  within  1 year warranty time .

2. Engineers are available to service machinery overseas

3. Provide technical support for life.

Do we have Distributors?

Yes, we have distributor In Australia. And We are widely recruit dealers around the world.

If you want to be one of them, please contact us.

Can we accept OEM?

Yes, we can



Contact us by below message window.
